Autel MaxiCOM MK906PRO-TS All-in-one TPMS Diagnostic Scanner

With ECU Coding, Full TPMS Functions, 36+ Services, All System Diagnostics, Bi-directional Control

Important Selling Points

1.Top-level TPMS Full Functions
2.ECU Coding Functions
3.36+ Services for 99% Vehicles
4.Fast and intuitive Android 10.0 OS, the latest operate system in the market to conduct multiple tasks smoothly
5. Qualcomm 660 Octa-core processor, one of the world’s fastest mobile processor
6.Reliable and fast 128GB Solid State Drive stores more data and conduct multiple tasks smoothly
7.11600mAH large capacity for 14 hours Non-Stop using time; 16 MP front camera and 16 MP rear camera for a user-oriented experience
8. 8'' HD Touch Screen with 1920 x 1200 P Resolution: Hassle-free browsing data
9. Latest DoIP/CAN FD BUS protocols supported for high-speed CAN cover new vehicle models

Detailed Information about MK906PRO-TS

Pro-TPMS Tool to Fix 99% TPMS Problems

Overall by TPMS function: MK906PRO-TS > MS906TS > TS608 > MP808TS > MK808TS
Activate 99% TPMS sensors and read sensor status; Diagnose E/C/U for complete TPMS health check; Program MX-Sensors in 4 ways; On-tool 3000+ relearn procedure and wide OBD relearn coverage, Access to retrofitted-TPMS system …

Overall by function: MS906 Pro-TS = MK908 = MS908 = MS908S Pro > Elite = MS906TS > MS906 > MP808TS > MK808TS

Note: It only support Autel MX-sensor

Essential TPMS Service Tool in Your Toolbox

Autel MK906PRO-TS is a great combination of an ultra-level automotive scanner + TPMS service tool. If you are after a car computer that can also be a professional TPMS expert to activate OE & OEM sensors with built-in relearn procedures, program Autel MX-sensors, turn off TPMS light, and retrieves the sensors’ OEM part No … then this scan tool will do just that.

equipped vehicle coverage: well-suited to mechanics in auto repair shops working on a wide range of cars.
Powerful TPMS Activation Tool: activate all kinds of OEM & universal 315MHz + 433MHz sensors on the market.
Effective TPMS Relearn Tool: easy automatic, stationary or OBDII relearn with 3000+ built-in TPMS relearn guidance.
Autel MX-Sensor TPMS pro-gramm-ing Tool: get access to, copy old sensor ID, and write data into MX-Sensors;
4 pro-gramm-ing ways: Copy by Activation; Copy by Manual Input; Auto Create 1-16 in batch; Copy by OBD.
At-A-Glance TPMS Status Screen: display all sensors’ pressure, temperature, battery life, and sensor/E/C/U data to quickly identify the TPMS error.
Complete TPMS Diagnostics: read/clear TPMS codes with on-screen DTC description, retrieve TPMS live data stream.
TPMS Module Retrofitting, Build Everything from Scratch!

TPMS module retrofitting, a function that the other special tool can only dream of! For vehicles that do not have OEM tire pressure module, the tpms diagnostic service tool MK906pro-TS can retrofit your car with an OEM tire pressure module, and also program and relearn the sensors.

Advanced ECU Coding Online & Offline Easy to Operate

What separates the pro-gramm-ing tool MK906PRO-TS as a high-end diagnostic scanner from most standard OBD2 scan tools & car code readers is its advanced E/C/U Co-ding . It allows you to connect to the car’s E/C/U system, set up new car modules, or adjust performance metrics, which could be super time-consuming yet Autel has developed the Online & Offline Co-ding solution that can be used by any technician or shop, regardless of experience.

Online Co-ding - the Autel online servers will calculate and send you the E/C/U Co-ding values automatically for a quick and precise Co-ding process.
Offline Co-ding - you can manually input the Co-ding values and access the Co-ding menu when you are skilled enough for more customized car builds.
What Can E/C/U Co-ding Do For You?

Setup New E/C/U Modules
so the newly-installed E/C/U modules will work in harmony with the rest of the car system after repair or replacement.

Upgrade Car Performancefine-tune E/C/U mainframe to make the moving pointer perform self check, display the amount of fuel consumption, activate beep sound, one press to close all windows, flash all brake lights during emergency braking, make turn signal light & rear fog light alternatively flash, activate & deactivate daytime running lights …
Fix Complex E/C/U-controlled Issues low fuel efficiency, mysterious power loss, unknown fault in mechanical parts …
Shield Annoying or Unneeded Car Functions like automatic start/stop.


We recommend connecting an external battery charger to the vehicle to ensure a successful operation.

Same OE-Level All Systems Diagnostics as MK908pro, MK908, MS908SP, Elite

With mechanic tool mk906prots, you can access in-depth onboard systems, read & clear DTCs, active tests, and reset all kinds of dashboard lights related to every individual control module in the car, including more recent developments like tire-pressure monitors in newer vehicles, not just basic universal systems like the engine:

For Engine System: Detect common issues such as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.
For SRS System: Troubleshooting a Bad seat belt, a Corroded crash sensor, or some Water intrusion in a connector, etc.
For ABS System: Diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.
For Transmission System: Avoid Grinding or shaking sensation in gear, Whining, humming, or clunking noises, Burning smells, Gears slipping, Low or leaking transmission fluid, etc.
For TPMS System: Verify problems of Low tire pressure, Faulty tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

All-around Bidirectional Control / Active Test

Auto diagnostic scan tool MK906 PRO TS performs active test for 99% vehicles on the market. To further shortening the troubleshooting time without tearing the vehicle apart, it can:

rolling up / down a window
turning the fuel pump on and off
cycling the a/c clutch on and off
By directly monitoring their operations, you can quickly locate the problems and solve them.

36+ Service Functions: a Breakthrough in Car Routine Maintenance

What are car owners in America delaying the most?

11 million cars require an oil change.
7 million unchanged tires.
5 million delayed brake jobs.
What a shocking number! Performing car routine maintenance work is no longer a recommendation or best practice for car drivers. It’s essential. Lucky you can repair most vehicles on the road with greater ease and efficiency, thanks to the 36+ multi-use service functions ALL housed in this mk906pro ts escaner automotriz professional:

Oil Reset: the car scanner will help read and reset the oil light.
SAS: reset the steering angle to zero to keep the car running straight.
Injector Co-ding : write the adaptive injector code into car system to achieve the optimum in providing smooth running.
EPB: help replace and reset the brake pad.
BMS Reset: register the battery after replacement.
DPF: help remove the particulate matter to keep the trap stable.
ABS Bleeding: help exhaust the air in ABS in an easy way.
TPMS Reset: reset the tire pressure.
Throttle Adaptation: initialize the throttle actuators to the default state.
And A/F Reset, ADBLUE, Coolant Bleed, EGR Reset, Language Set, NOX Reset, Seat Calibration, Transport Mode, Tire Setting, Stop/Start, Power Balance, AC System Relearn/Initialization, Windows Calibration … The Autel regular upgrades ensure above 36+ services will be compatible with more newly-launched vehicles to help you double the business.

Note: funtions are not universal to all cars, pls send your car's VIN# to us to check compatibility before order it.

Auto VIN

Just one click can facilitate the vehicle diagnostic process. MK906PRO scanner tool incorporates the latest Auto VIN technology that allows technicians or repairmen to easily identify vehicle information such as manufacturer, model, year and place of manufacture, etc.

Key Fob Programming

With IMMO Keys function, automotive diagnostic scanner MK906PRO can disable or clear info of the lost vehicle keys, add new keys, program the replacement key fob for most Asian and American vehicles. Note: Not available for BMW, Benz, Audi, etc.

Language

English, Simplified Chinese, Traditional Chinese, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russian

After you get the product, please tell us your SN of machine to activate the language you need

Compatible with almost all vehicles

Autel OBD2 scanner MK906BT can help almost all vehicles replace ECUs/modules, such as Honda, Jeep, Chrysler, VAG, GM, Peugeot, Citroen, Mitsubishi, Suzuki, etc. However, it’s NOT available for modules on the vehicles that need to do programming, online coding, online parameterization, and online matching.

Wide Coverage & Easy to Use

No need to worry about compatibility issues. The device currently supports 80+ car manufacturers and 140+ car brands worldwide. Also, you will be able to get more new car models through subsequent high-frequency software updates.

It is compatible with: Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO, UD, Fuso.

Update Service & Warranty

1 year free upate service

1 year warrantry for any quality problem

Specifications

Operating System
Android™ 10

Processor
Octa-core processor (2.2 GHz Qual highperformance Kryo cores + 1.8 GHz Qual lowpower Kryo cores)

Memory
4 GB RAM & 128 GB ROM

Display
8.0-inch TFT-LED capacitive touch screen with 1920 x 1200 P resolution

Connectivity
Wi-Fi (802.11 b/g/n)
USB: 2.0, Mini USB 2.0
Wireless BT V2.1+EDR Class1, HDMI
SD Card (support up to 32 GB)


Camera (rear)
Rear: 16 megapixel, autofocus with flashlight
Front: 16 megapixel

Sensors
Gravity Accelerometer
Ambient Light Sensor (ALS)

Audio Input/Output
Input: microphone
Output: single speakers, 3-band 3.5 mm stereo/standard headset jack

Power and Battery
11,600 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply

Input Voltage
12 V (9-35 V)

Power Consumption
5 W

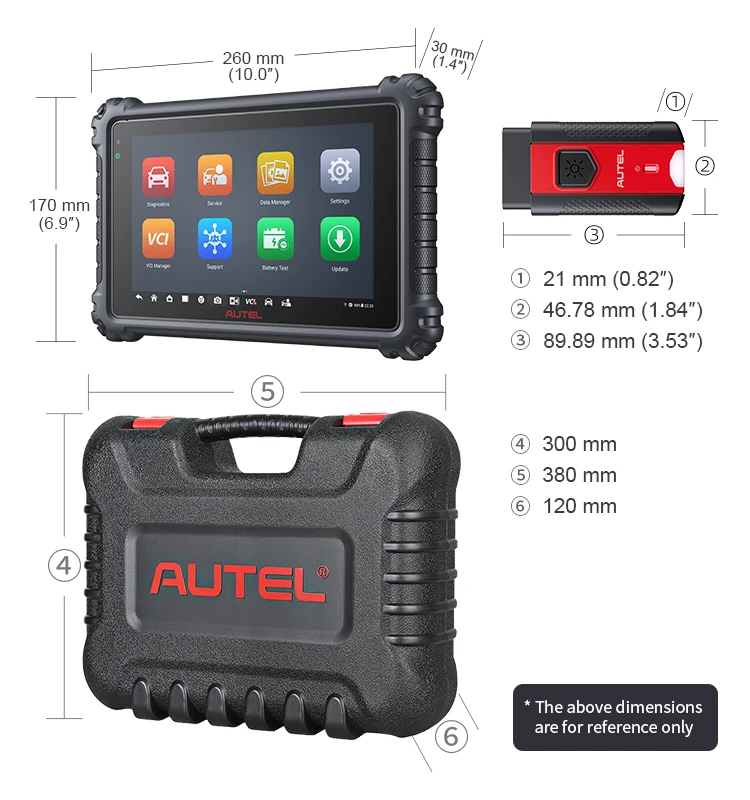

Dimensions (W x H x D)
260 mm (10.0”) x 170.0 mm (6.9”) x 30.0 mm (1.4”)

Weight
NW: 0.92 kg (2.03lb.)

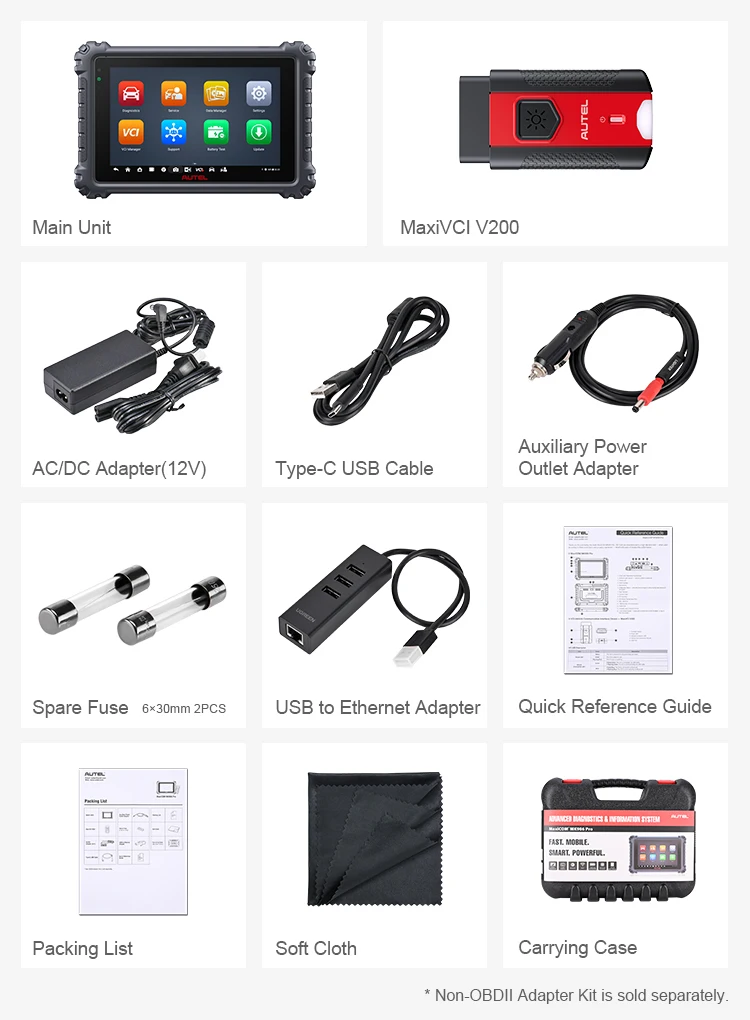

Packing List

1*Main Unit
1*MaxiVCI V200
1*AC/DC Adapter(12V)
1*Type-C USB cable
1*Auxiliary Power Outlet Adapter
2*Spare Fuse (6*30mm)
1*USB to Ethernet Adapter
1*Quick Reference Guide
1*Packing List
1*Soft Cloth
1*Carry Case

*Non-OBDII Adapter Kit is sold separately
